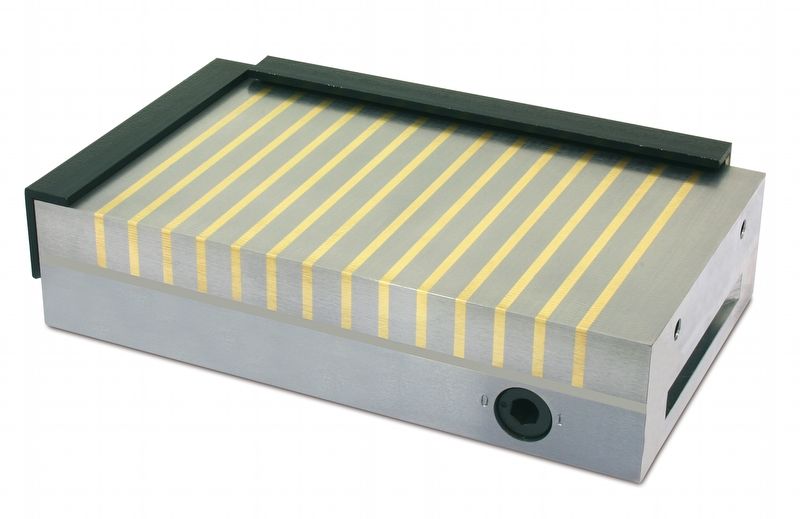

Permanent magnetic chucks PMNEO

PMNEO - STRONG PLATE CHUCKS FOR MILLING
Permanent magnetic clamping plates of the type PMNEO are super-strong compact plates for heavy machining. Parts from approx. 30x15x6mm can be milled with max. achievable holding forces. Even on rough surfaces, good holding forces are still achieved. The clamping plate is activated with removable hexagonal shift lever.

Products Size (mm) Holding Force
N/cm²		 Weight (kg) Price € each. Quantity

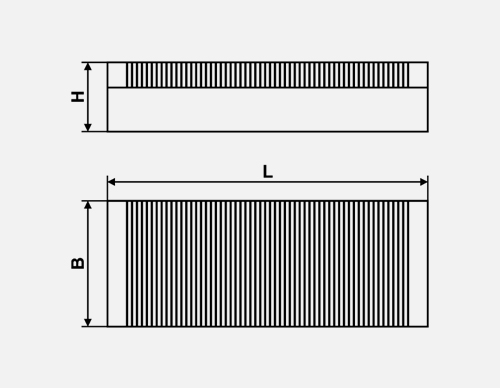

L B H
PMNEO 2515
250 150 56 150 17 € 1.098,000
PMNEO 3015
300 150 56 150 18 € 1.218,000
PMNEO 3020
300 200 56 150 26 € 1.668,000
PMNEO 3515
350 150 56 150 24 € 1.298,000
PMNEO 4515
400 150 56 150 31 € 1.778,000
PMNEO 4020
400 200 56 150 35 € 1.698,000
PMNEO 5020
500 200 56 150 44 € 2.068,000
PMNEO 5030
500 300 56 150 56 € 2.738,000
PMNEO 6020
600 200 56 150 52 € 2.428,000
PMNEO 6030
600 300 56 150 78 € 2.998,000
