Neodymium holding magnets

MAXIMUM HOLD
Neodymium holding magnets are cased in steel. They are characterized by higher strength than the other magnets (they are also more durable). They are widely used in many branches, such as industry, architecture, automotive, agriculture and advertising.

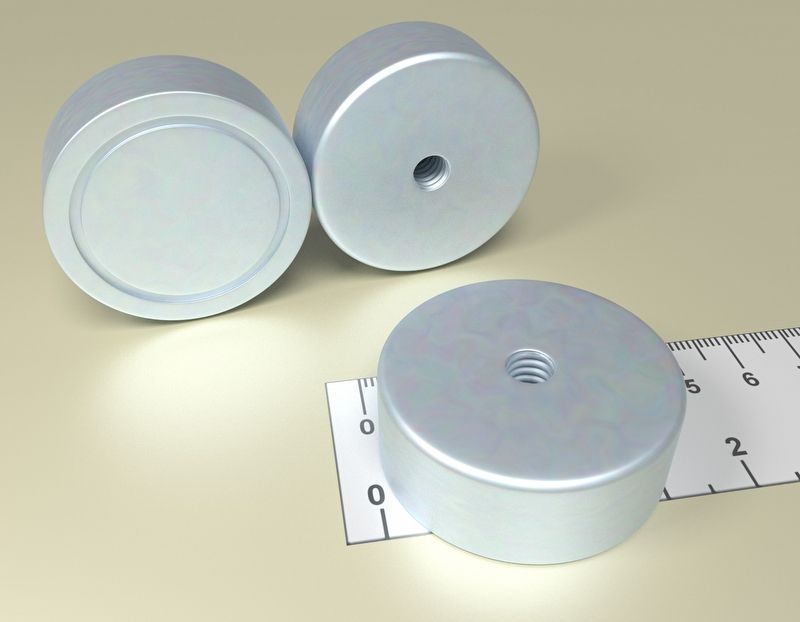

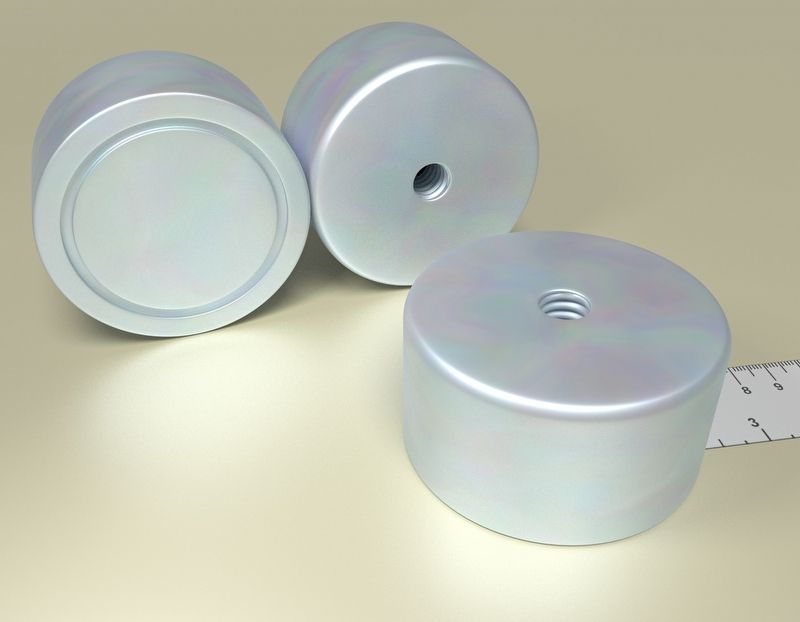

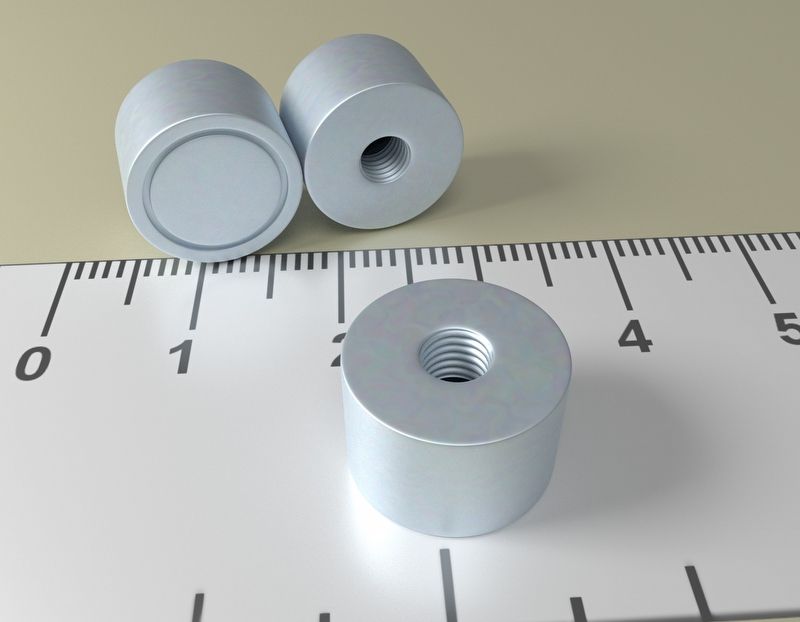

Holding magnets with internal thread
Holding magnets with central hole and conical countersink
Holding magnets with central hole and cylindrical countersink
Holding magnets with internal thread
Holding magnets with threaded pin

Holding magnets with internal thread

Products Size (mm) Holding Force (kg) Price € each. Quantity
A M B

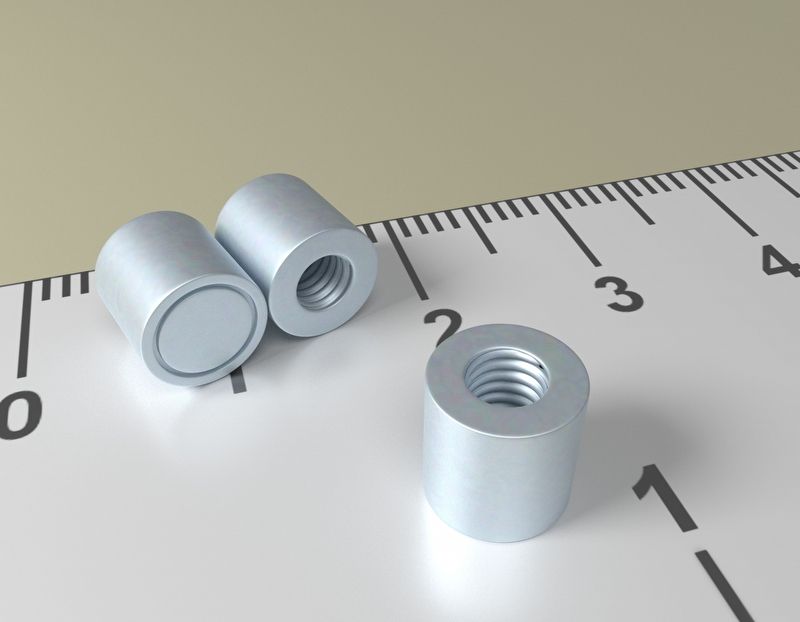

HM 6 x 6 / M3
6 3 6 0.7 up to 1
€ 0,775		 from 70
€ 0,641

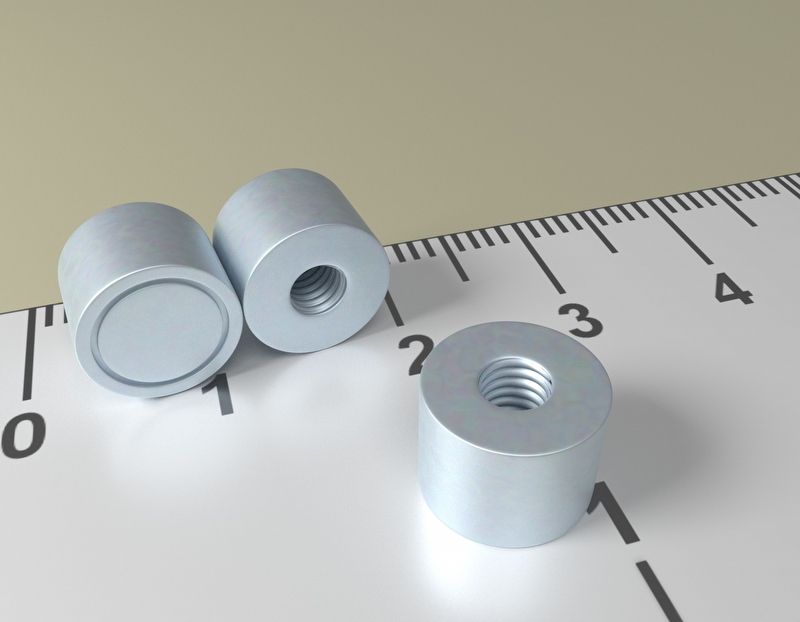

HM 8 x 6 / M3
8 3 6 2 up to 1
€ 0,850		 from 60
€ 0,713
HM 12 x 8 / M4
12 4 8 4 up to 1
€ 1,200		 from 45
€ 0,998
HM 19 x 8 / M4
19 4 8 12 up to 1
€ 2,425		 from 30
€ 2,043

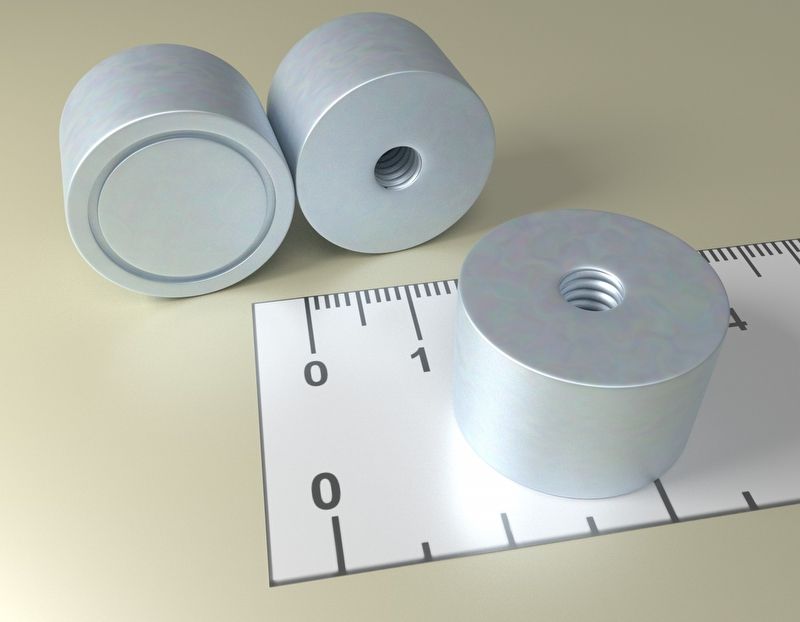

HM 20 x 13 / M5
20 5 13 13 up to 1
€ 2,575		 from 20
€ 2,161
HM 29 x 10 / M5
29 5 10 35 up to 1
€ 5,800		 from 10
€ 4,869
HM 35 x 15 / M6
35 6 15 70 up to 1
€ 24,475		 from 3
€ 20,544
HM 40 x 15 / M6
40 6 15 100 up to 1
€ 27,500		 from 2
€ 23,085
HM 45 x 15 / M8
45 8 15 130 up to 1
€ 35,750		 from 2
€ 29,925

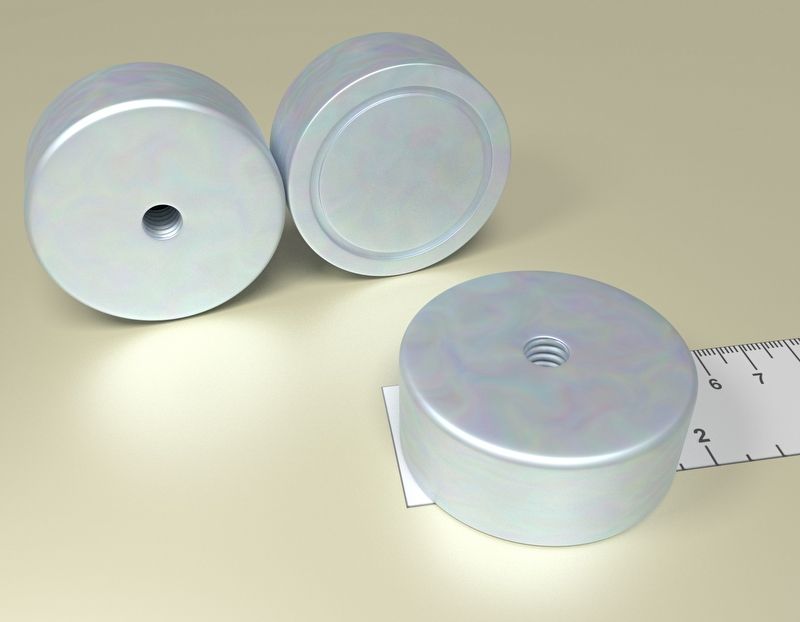

HM 50 x 15 / M8
50 8 15 145 up to 1
€ 19,650		 from 3
€ 16,506
HM 50 x 20 / M8
50 8 20 160 up to 1
€ 38,500		 from 2
€ 32,300
HM 60 x 35 / M8
60 8 35 200 up to 1
€ 78,750		 from 3
€ 69,350

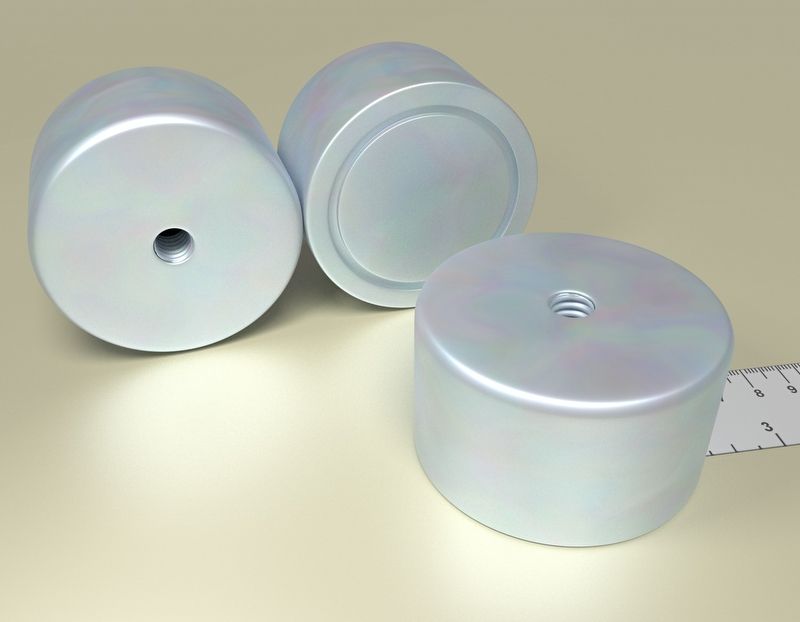

HM 65 x 40 / M10
65 10 40 280 up to 1
€ 101,750		 from 2
€ 89,300
HM 70 x 40 / M10
70 10 40 310 up to 1
€ 117,000		 from 2
€ 103,075
HM 75 x 40 / M12
75 12 40 340 up to 1
€ 134,500		 from 2
€ 118,275
HM 80 x 45 / M12
80 12 45 410 up to 1
€ 154,750		 from 3
€ 137,750
HM 85 x 45 / M12
85 12 45 470 up to 1
€ 178,000		 from 3
€ 158,413

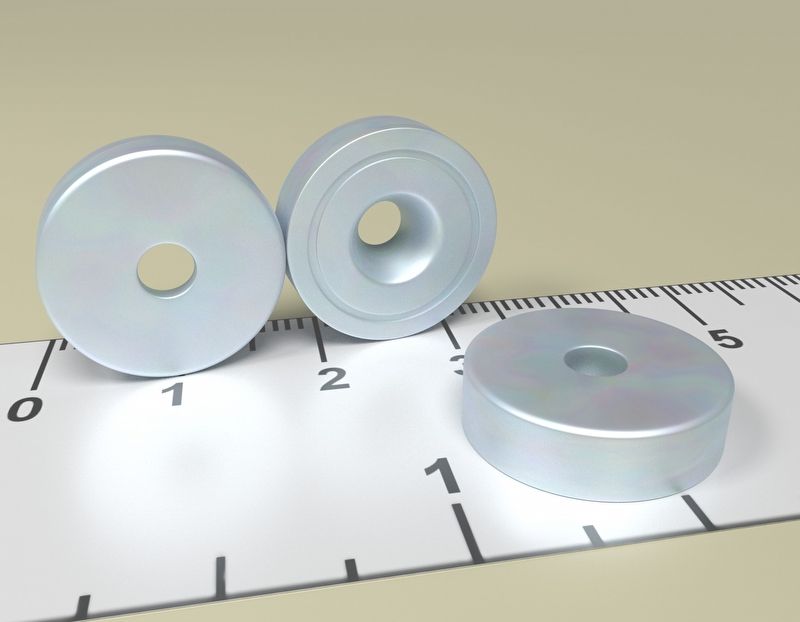

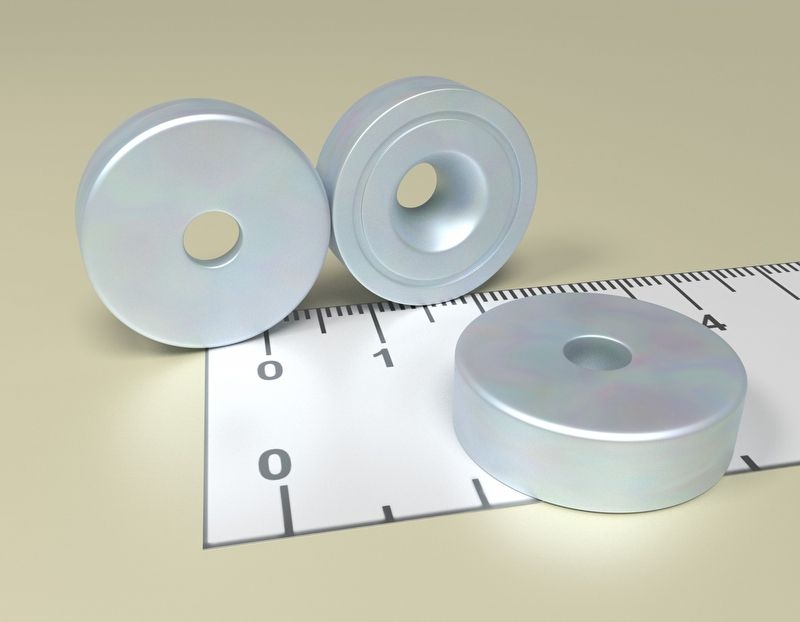

Holding magnets with central hole and conical countersink

Products Size (mm) Holding Force (kg) Price € each. Quantity
A D1 D2 B
HM 16 x 6,6/3,5 x 4,5
16 3.5 6.6 4.5 6 up to 1
€ 1,725		 from 35
€ 1,449
HM 20 x 9/4,5 x 6
20 4.5 9 6 15 up to 1
€ 2,375		 from 20
€ 2,090
HM 25 x 9/4,5 x 7
25 4.5 9 7 25 up to 1
€ 4,575		 from 12
€ 3,848

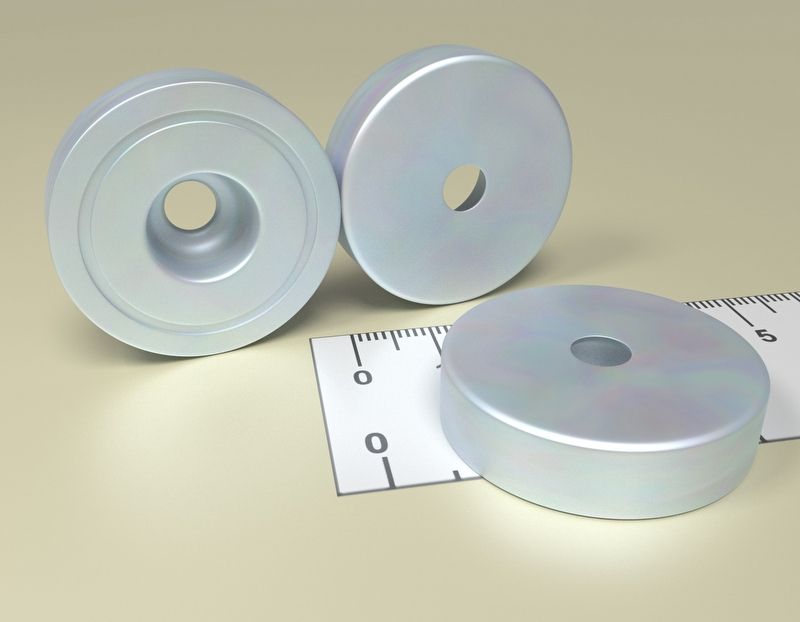

HM 32 x 11/5,5 x 7
32 5.5 11 7 40 up to 1
€ 7,250		 from 8
€ 6,104

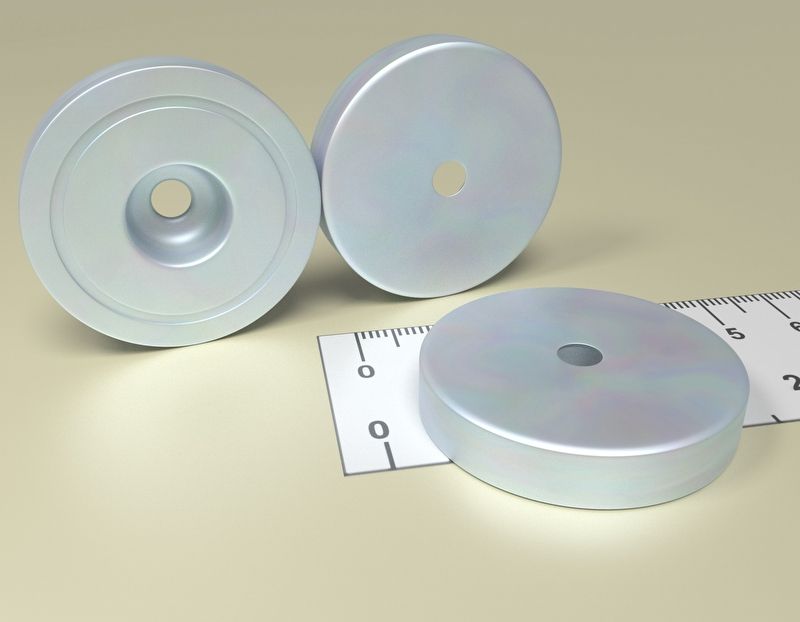

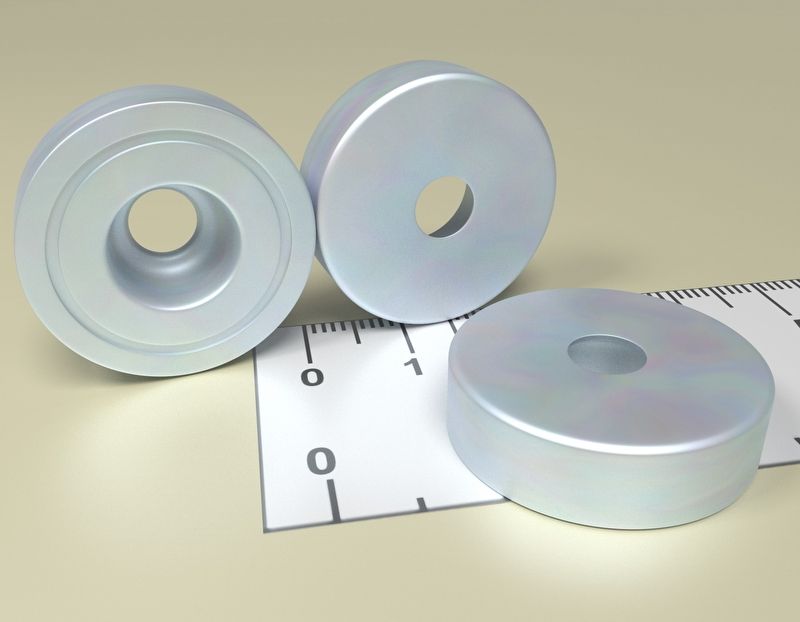

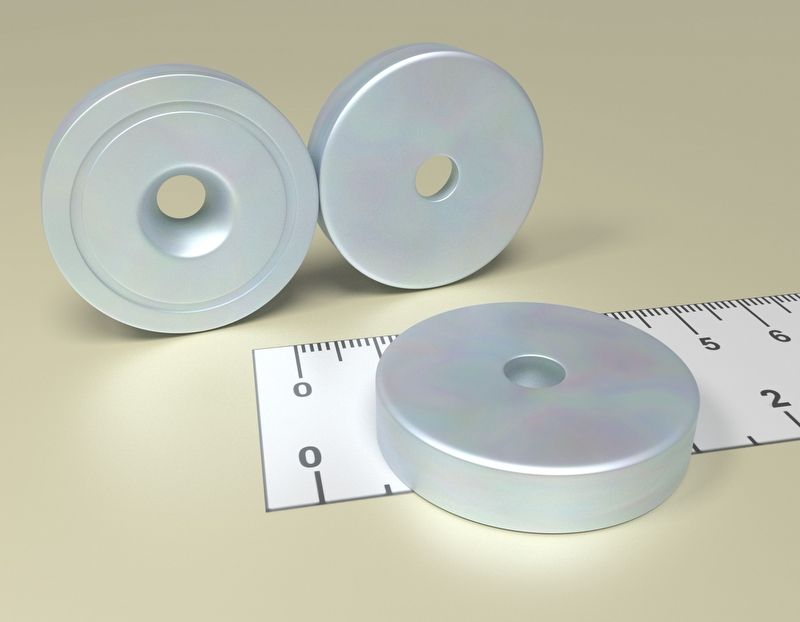

Holding magnets with central hole and cylindrical countersink

Products Size (mm) Holding Force (kg) Price € each. Quantity
A D1 D2 B
HM 20 x 8 x 3,1 x 4,5
20 3.1 8 4.5 10 up to 1
€ 2,625		 from 25
€ 2,209
HM 25 x 11 x 6 x 7
25 6 11 7 20 up to 1
€ 4,725		 from 10
€ 3,966
HM 32 x 11,5 x 6 x 8
32 6 11.5 8 35 up to 1
€ 7,875		 from 10
€ 6,603
HM 36 x 12 x 5 x 7
36 5 12 7 47 up to 1
€ 9,650		 from 5
€ 8,099

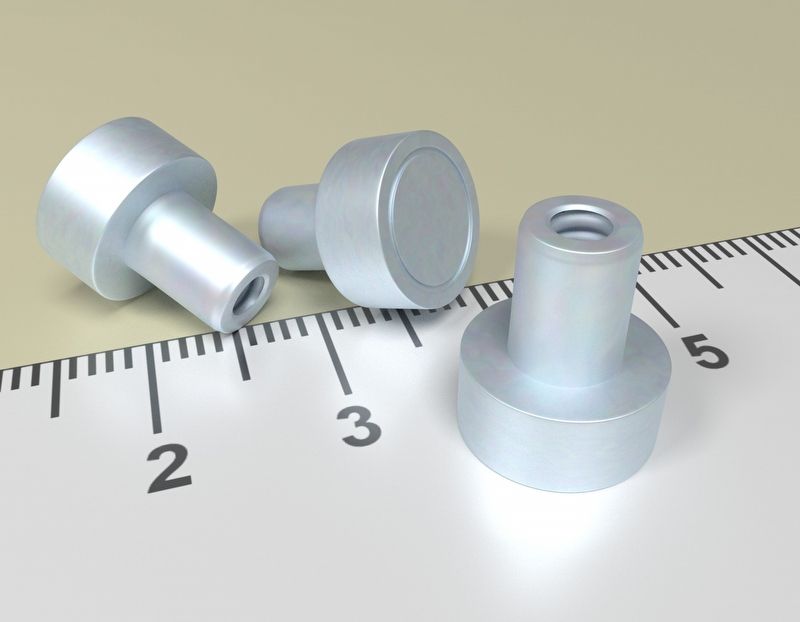

Holding magnets with internal thread

Products Size (mm) Holding Force (kg) Price € each. Quantity
A M C B
HM 10 x 4,5 x M3 in x 11,5
10 3 11.5 4.5 3 up to 1
€ 1,025		 from 50
€ 0,855

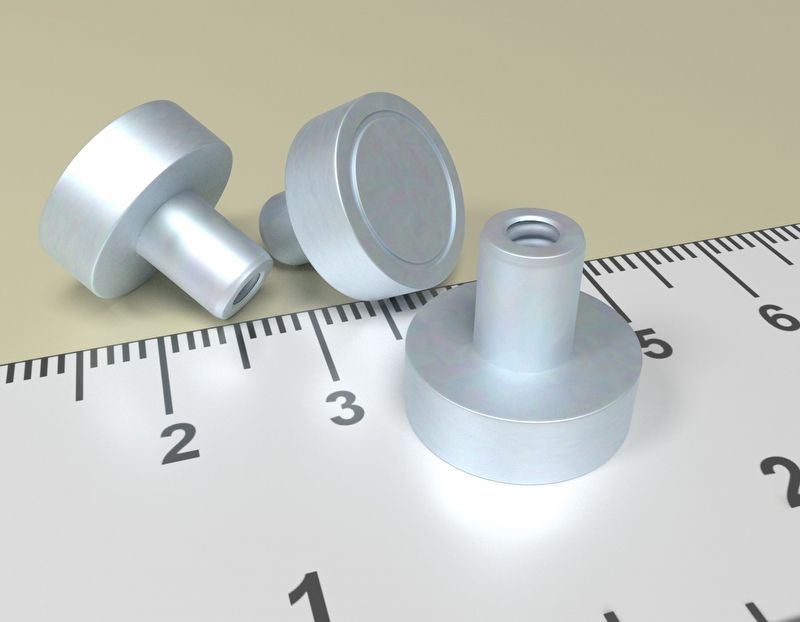

HM 13 x 4,5 x M3 in x 11,5
13 3 11.5 4.5 6 up to 1
€ 1,275		 from 40
€ 1,069

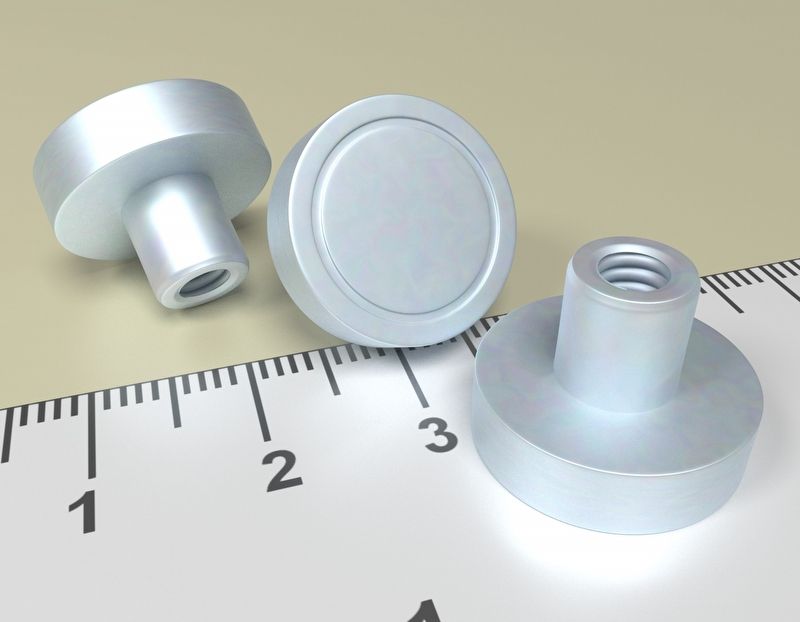

HM 16 x 4,5 x M4 in x 11,5
16 4 11.5 4.5 9.5 up to 1
€ 1,725		 from 30
€ 1,473
HM 20 X 6 X M4 wewn. X 13
20 4 13 6 18 up to 1
€ 2,725		 from 20
€ 2,280
HM 25 x 7 x M4 in x 14
25 4 14 7 25 up to 1
€ 4,325		 from 12
€ 3,634
HM 32 x 7 x M5 in x 15,5
32 5 15.5 7 40 up to 1
€ 8,500		 from 7
€ 7,125
HM 40 x 8,5 x M6 in x 15,5
40 6 15.5 8.5 80 up to 1
€ 12,500		 from 5
€ 10,498

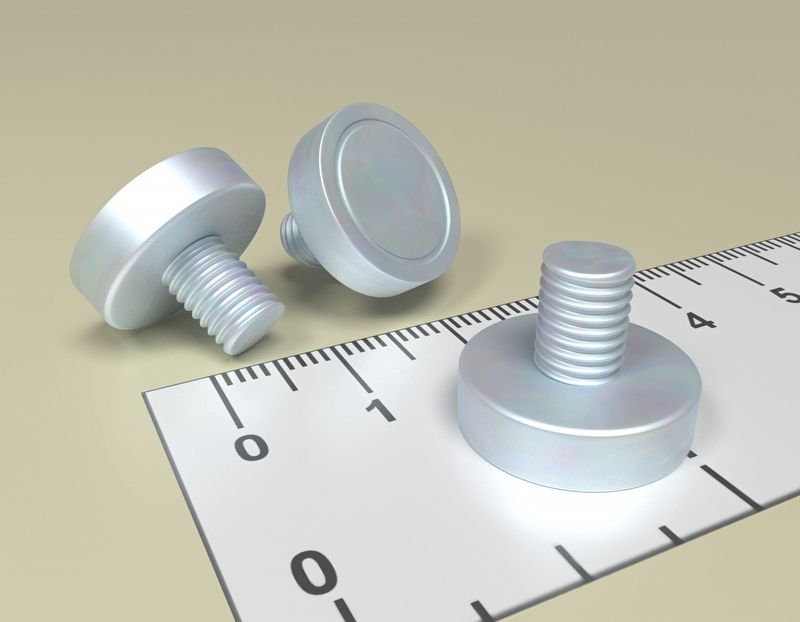

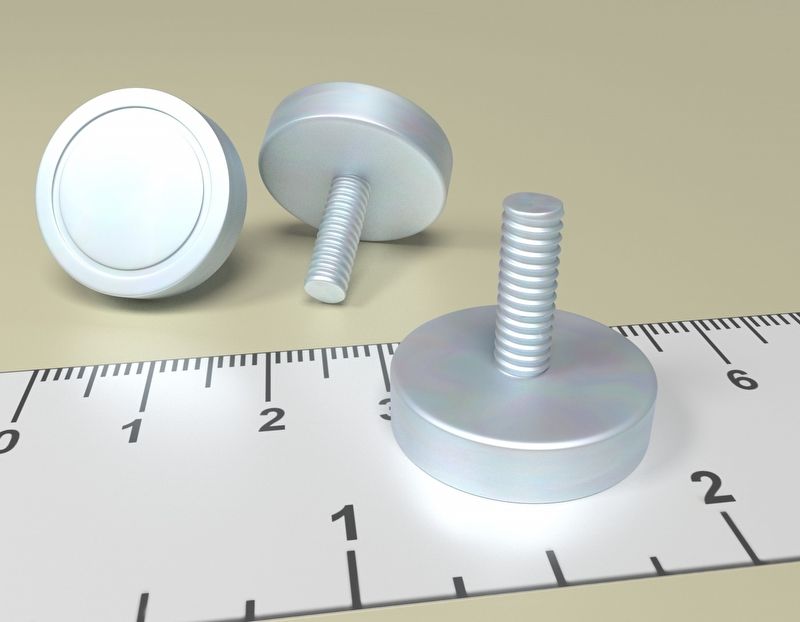

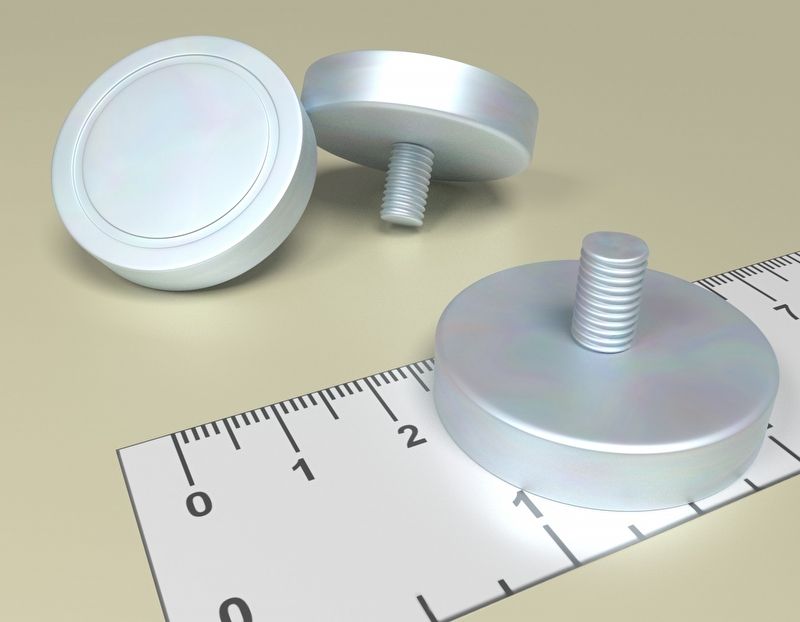

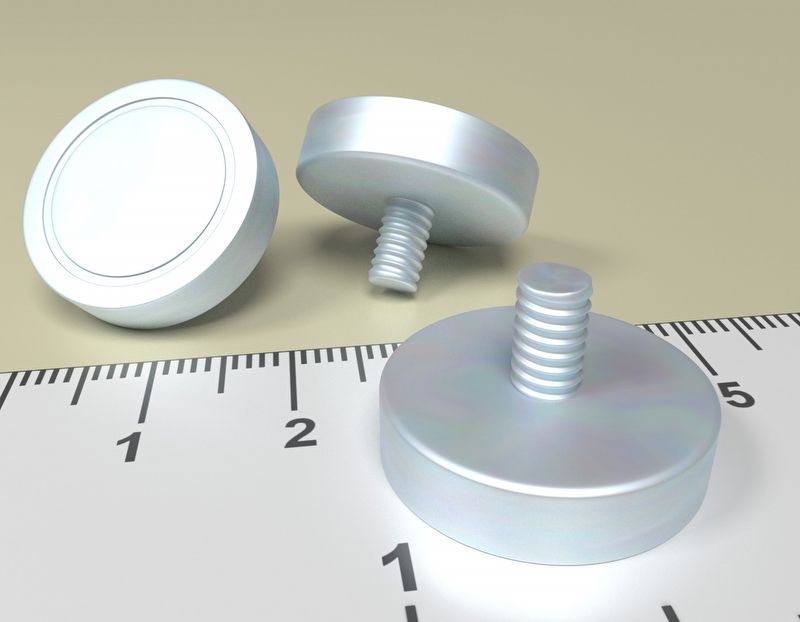

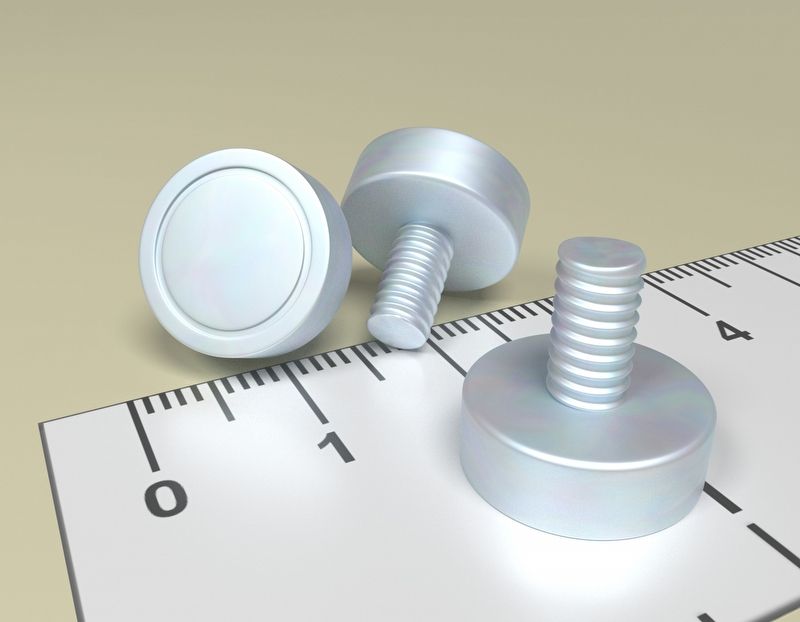

Holding magnets with threaded pin

Products Size (mm) Holding Force (kg) Price € each. Quantity
A M C B
HM 10 x 4,5 x M4 out x 12,5
10 4 8 4.5 3 up to 1
€ 0,900		 from 60
€ 0,760
HM 13 x 4,5 x M5 out x 12,5
13 5 8 4.5 6 up to 1
€ 1,250		 from 40
€ 1,045
HM 16 x 4,5 x M5 out x 12,5
16 5 8 4.5 10 up to 1
€ 1,725		 from 30
€ 1,473
HM 16 x 4,5 x M6 out x 12,5
16 6 8 4.5 10 up to 1
€ 1,725		 from 30
€ 1,473
HM 20 x 5 x M5 out x 12
20 5 7 5 16 up to 1
€ 2,725		 from 20
€ 2,280
HM 20 x 5 x M5 out x 18
20 5 13 5 16 up to 1
€ 2,750		 from 20
€ 2,304
HM 25 x 7 x M6 out x 17
25 6 10 7 27 up to 1
€ 4,625		 from 12
€ 3,871
HM 32 x 7 x M6 out x 17
32 6 10 7 45 up to 1
€ 8,500		 from 7
€ 7,125
